HVAC systems are among the most energy-intensive components of any commercial or industrial facility — accounting for nearly half of a building’s total energy consumption. For large-scale operations such as manufacturing plants, warehouses, pharmaceutical facilities, data centers, and commercial office complexes, generic off-the-shelf solutions rarely meet the mark.

That is where custom HVAC control panels make all the difference. Purpose-built to match the exact specifications of a given facility, these panels deliver precise environmental control, smarter HVAC energy management, and seamless integration with Building Automation Systems (BAS). Whether a facility operates across multiple zones, runs around the clock, or handles sensitive processes requiring strict temperature and air quality thresholds, a custom control panel for HVAC outperforms standard alternatives in every measurable way.

What Is a Custom HVAC Control Panel?

An HVAC control panel is the central nerve centre of any heating, cooling, and ventilation system. It receives real-time signals from temperature sensors, humidity sensors, pressure transducers, and other monitoring devices, then uses that data to direct HVAC equipment — starting or stopping units, adjusting setpoints, activating ventilation, or regulating airflow.

A custom HVAC control panel goes further: it is engineered from the ground up to reflect the unique layout, equipment, operational demands, and compliance requirements of a specific facility. Rather than adapting a pre-configured panel to a new environment, a custom solution is designed around the environment itself — resulting in tighter control, better efficiency, and longer service life.

Typical elements found inside an industrial HVAC control panel include relays, contactors, timers, circuit breakers, transformers, motor starters, and communication modules. Every component is selected, sized, and wired specifically for the application, ensuring reliable, safe, and code-compliant operation.

Key HVAC Control Panel Components

A well-designed custom panel integrates the following core HVAC control panel components, each contributing to system performance and longevity:

• Programmable Logic Controllers (PLCs): The decision-making core of the system. PLCs execute pre-programmed logic to manage start/stop sequences, interlocks, and dynamic responses to sensor inputs — enabling PLC-based HVAC control at scale.
• Variable Frequency Drives (VFDs): VFDs for HVAC applications adjust motor speeds in fans, air handling units, and pumps to match actual demand, delivering significant energy savings during low-load periods.
• Temperature, Humidity, and Pressure Sensors: Feed live environmental data back to the controller, enabling continuous, automatic adjustment of system output.
• Human-Machine Interfaces (HMIs): Touch-screen displays give operators an intuitive window into system status, enabling real-time monitoring and setpoint adjustments without specialist tools.
• Circuit Breakers and Fuses: Provide essential over-current and short-circuit protection for connected HVAC equipment and HVAC panel wiring.
• Communication Modules (BACnet, Modbus, LonWorks): Enable BAS integration and connectivity with IoT platforms and remote monitoring networks — critical for modern smart building controls.
• Relay and Contactor Assemblies: Switch electrical loads on and off in response to controller signals, coordinating the operation of multiple HVAC components simultaneously.

Each component is carefully selected by experienced engineers and configured to work in harmony with the facility’s specific HVAC equipment, load profile, and regulatory environment.

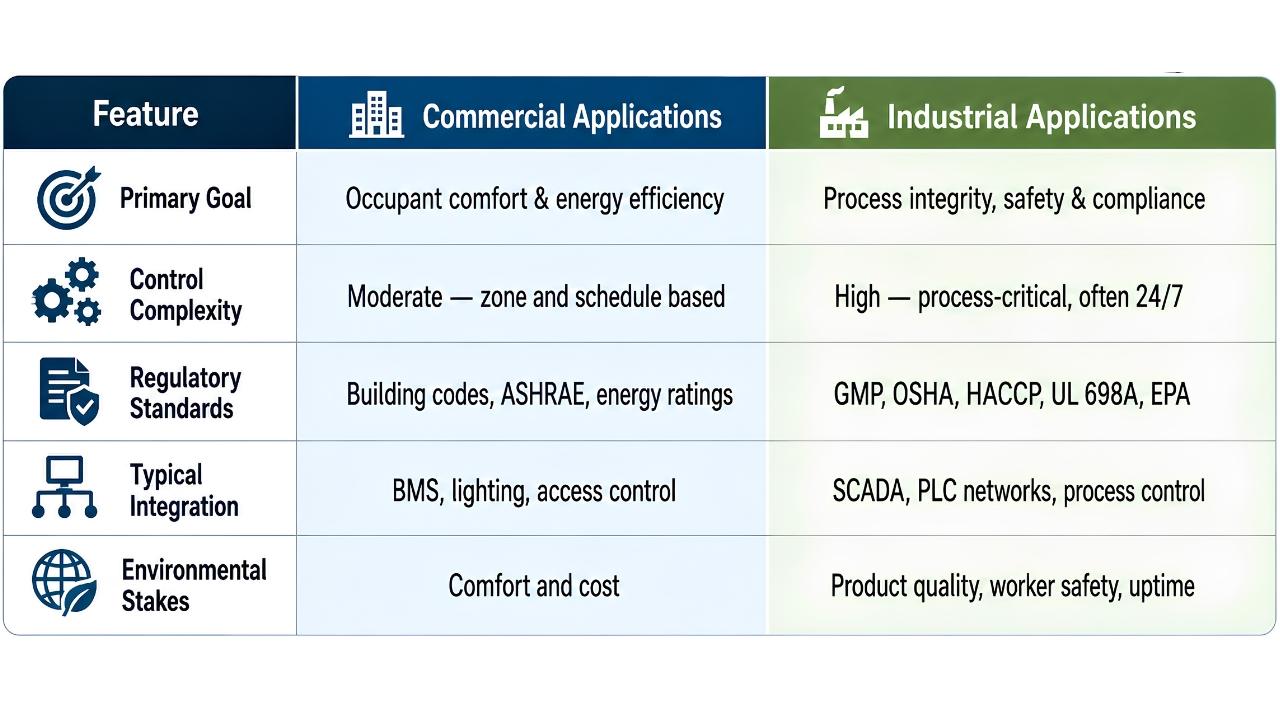

Application of Commercial & Industrial HVAC Control Panel

Core Benefits of Custom HVAC Control Panels

1. Precision Environmental Control

Custom panels maintain specific temperature, humidity, and airflow parameters within tight tolerances, a non-negotiable requirement in pharmaceutical manufacturing, food processing, cleanroom operations, and data centers where even minor deviations can compromise product quality, regulatory standing, or equipment performance.

2. HVAC Energy Management and Reduced Operating Costs

By incorporating VFDs for HVAC, demand-based control logic, and occupancy-aware scheduling, custom HVAC control panels reduce energy consumption by 15 to 25 percent compared to conventional rule-based systems. Facilities with high energy overheads see measurable ROI within months of commissioning.

3. Seamless BAS Integration

Custom panels are built with communication interfaces, BACnet, Modbus, LonWorks, and others, that interface directly with a facility’s existing Building Automation System (BAS). This centralises HVAC alongside lighting, access control, and fire safety on a unified dashboard, simplifying operations and improving response times.

4. Multi-Zone HVAC Control

Large facilities rarely have uniform environmental demands. Custom panels support multi-zone HVAC control, allowing independent management of temperature, humidity, and airflow across different areas of the same building — from server rooms and production floors to offices and loading docks.

5. Scalability and Future-Readiness

Unlike off-the-shelf products, custom panels are designed with expansion in mind. Adding new zones, integrating additional equipment, or upgrading communication protocols can be accomplished without replacing the entire system — protecting capital investment over the long term.

6. Remote Monitoring and Predictive HVAC Maintenance

IoT-connected modules allow facility managers to monitor system performance, receive real-time fault alerts, and make remote adjustments. Advanced configurations support predictive HVAC maintenance algorithms, identifying potential failures before they cause downtime — a significant advantage in mission-critical environments.

7. UL 508A Compliance and Regulatory Assurance

Custom panels built to UL 508A certified panel standards meet the safety certifications required for commercial and industrial environments. This is essential for facilities subject to OSHA regulations, EPA requirements, local building codes, and insurance provider standards.

Industries That Benefit from Custom HVAC Control Panels

While virtually any commercial or industrial operation can benefit from a tailored HVAC automation system, the following sectors have the most to gain from a custom approach:

• Manufacturing Plants: Require precise ventilation to remove airborne contaminants, protect machinery from heat and humidity extremes, and maintain safe working conditions across large floor areas.
• Pharmaceutical and Biotech Facilities: Operate under strict cleanroom environmental control regulations. Any deviation in temperature, humidity, or differential pressure can invalidate entire production batches, making robust custom HVAC control panels essential.
• Data Centers: Demand continuous, redundant cooling that responds dynamically to fluctuating server loads. Multi-zone HVAC control and real-time BAS integration are critical to uptime.
• Food and Beverage Processing: Depend on precise temperature and humidity management at every production stage — from cold storage through processing and packaging.
• Hospitals and Healthcare Facilities: Must maintain infection control standards through carefully managed airflow, air quality, and pressurisation between zones.
• Commercial Office Buildings and Retail Complexes: Benefit from zone-based control and occupancy-driven scheduling to maximise occupant comfort while minimising energy costs.

Smart Technology and the Modern HVAC Automation System

The convergence of IoT, artificial intelligence, and cloud-based analytics has fundamentally transformed what custom HVAC control panels can do. Today’s most advanced panels go well beyond simple on/off switching — they function as intelligent HVAC automation systems capable of learning, adapting, and self-optimising.

Smart building controls can adjust system output in real time based on live occupancy data, outdoor weather conditions, and internal thermal load demands — eliminating wasteful over-heating or over-cooling. When integrated with renewable energy systems such as rooftop solar, these panels can also optimise when the HVAC system draws from the grid versus on-site generation, further reducing operational costs and carbon footprints.

Predictive HVAC maintenance capabilities allow the system to flag developing faults — a bearing running hot, a filter approaching capacity, a VFD drawing excess current — before they escalate into failures. For facilities where unplanned downtime is costly, this level of intelligence represents a significant competitive advantage.

Achieving this level of performance requires more than hardware. It demands precise HVAC panel wiring, carefully structured control logic, and deep application knowledge — the hallmarks of an experienced custom panel manufacturer.

How to Choose the Right HVAC Control Panel Manufacturer

Selecting a qualified HVAC control panel manufacturer is one of the most consequential decisions a facility manager or project engineer will make. The right partner will not only deliver a panel that meets your immediate requirements but will also ensure it is future-ready, fully compliant with applicable standards, and supported by knowledgeable technical expertise throughout its service life.

Key criteria to evaluate when choosing commercial HVAC control panel manufacturers include:

• Demonstrated experience with UL 508A certified panel fabrication for your specific industry
• In-house engineering capability to customise control logic, HMI interfaces, and communication protocols
• Comprehensive pre-shipment testing to validate panel performance before installation
• Support for BAS integration across multiple protocols (BACnet, Modbus, LonWorks)
• Responsive after-sales support and access to spare components

Why Covenant Panelworks (CPW) Stands Out

Covenant Panelworks (CPW) is a trusted name in custom HVAC control panel design and fabrication for commercial and industrial applications. With deep expertise in industrial HVAC control panels and commercial HVAC control panel systems, CPW works closely with clients from initial consultation through engineering, assembly, testing, and commissioning.

Every panel built by Covenant Panelworks (CPW) is engineered to the customer’s exact specifications, using high-quality components and rigorous quality control checkpoints at every stage of production. Each system is built to UL 508A certified panel standards, ensuring compliance with OSHA, EPA, and local building code requirements.

What sets CPW apart is its genuinely collaborative approach. Rather than offering a catalogue of pre-built products, the CPW engineering team invests the time to understand each client’s process demands, environmental challenges, and operational goals — then translates that understanding into a custom HVAC control panel that performs precisely as intended from day one.

From simple single-zone commercial HVAC control panels to complex multi-building HVAC automation systems with full BAS integration, Covenant Panelworks (CPW) has the engineering depth, component inventory, and manufacturing capability to deliver — on time and to specification.
