A complete technical guide for engineers, OEMs, and system integrators — covering working principles, key components, integration layers, compliance standards, and how to select the right panel for your application.
Every time a production line starts, a pump switches on automatically, or a robotic arm moves with precision — an industrial control panel makes it happen. These are the unsung workhorses of manufacturing: centralized control hubs housing the electrical systems required to monitor inputs, process complex logic, and execute outputs with millisecond accuracy.
By integrating sensors, PLCs, HMIs, and actuators into a single engineered enclosure, control panels translate raw field data into real-time commands that keep entire facilities running with the consistency modern industry demands. According to Rockwell Automation, top OEMs using advanced automation systems have cut downtime recovery by up to 40% — a figure that underscores just how central these panels are to operational performance.
Whether you’re evaluating a first automation project, upgrading aging infrastructure, or specifying a panel for a new OEM build, this guide gives you the technical foundation to make informed, confident decisions.
INDUSTRY CONTEXT
Industrial control panels are projected to be a key driver behind the $300B+ global industrial automation market by 2027. Facilities deploying advanced control systems report 20–30% productivity gains within the first three years. — McKinsey & Company
Quick Summary
Here’s what this guide covers — and what every automation professional should understand about industrial control panels:
- An industrial control panel is the central brain of any automated system, controlling machines and processes from a single engineered enclosure.
- It operates on a continuous real-time feedback loop: Input (sensors) → Processing (PLC) → Output (devices) → Feedback (monitoring).
- The PLC scan cycle — completing every 1–20 milliseconds — is what makes modern panels deterministic, reliable, and safety-critical.
- Core components include the PLC (logic control), HMI (operator interface), VFD (motor speed control), relays and contactors (switching), and circuit protection devices (safety).
- Modern panels integrate with SCADA, MES, and IIoT platforms to enable remote monitoring, data analytics, and predictive maintenance.
- UL 508A certification is the mandatory benchmark for North American industrial control panels — non-compliant panels carry serious safety and liability risks.
- The right panel selection framework weighs process requirements, environment rating, compliance needs, scalability, and total cost of ownership.
What Is an Industrial Control Panel?
An industrial control panel is a factory-assembled enclosure — typically constructed from steel — that houses the electrical and electronic components needed to control, monitor, and protect industrial machinery and automated processes. Put simply: it is the brain that tells every machine what to do, when to do it, and when to stop.
Unlike a standard domestic switchboard, an industrial control panel does far more than distribute electricity. It integrates programmable logic, operator interfaces, protection devices, and communication systems into a single unified unit. A properly engineered panel allows an operator to oversee an entire production floor from a single screen, with the PLC executing thousands of logic decisions every second.
At Covenant Panelworks, every panel we build is engineered to a specific application — not assembled from generic off-the-shelf configurations. That distinction matters when uptime, safety, and compliance are on the line.
Key Terminology: Control Panel vs. Cabinet vs. Switchboard
- Control Panel: A fully assembled enclosure containing control, protection, and automation components engineered to a specific application.
- Control Cabinet: A generic term for any industrial enclosure. Can house panels, servers, or drives — not always a fully engineered assembly.
- Switchboard: Primarily for power distribution and protection. Lacks the programmable control logic found in automation panels.
Types of Industrial Control Panels
Understanding how control panels work in automation begins with knowing which type is deployed. Each serves a distinct operational role:
| Panel Type | Primary Function | Common Industry |
|---|---|---|
| PLC Control Panel | Automated logic execution and process control | Manufacturing, Automotive |
| Motor Control Centre (MCC) | Centralised motor management and distribution | Oil & Gas, Water Treatment |
| SCADA Panel | Remote monitoring, supervisory control at scale | Utilities, Energy, Mining |
| Power Distribution Panel | Safe electrical power routing and protection | All industrial sectors |
| HMI Panel | Operator interface, real-time monitoring | Food Processing, Pharma |
| VFD Control Panel | Variable motor speed and energy efficiency | HVAC, Conveyors, Pumps |
Read for more: Industrial Control Panels: A Quick Guide
Why Every Automated System Depends on a Control Panel
Behind every smart factory is a control panel making decisions in milliseconds. To understand why, consider the difference between a manual and automated operation.
In a manual bottling plant, a worker monitors fill levels, starts conveyors, checks temperatures, and flags faults — all by eye and hand. A single moment of inattention results in under-filled bottles, contamination, or a safety incident. Now replace that worker with an industrial automation system: sensors and actuators feed continuous data into the PLC, which monitors every variable simultaneously and reacts in under 10 milliseconds. Quality is consistent. Waste is eliminated. The plant runs 24 hours a day without fatigue.
This is the fundamental value proposition of an industrial control panel in automation: it replaces reactive, error-prone human monitoring with proactive, logic-driven control. The result isn’t just efficiency — it’s a completely different category of operational capability.
Core Working Principle: The Automation Loop
At the heart of how control panels work in automation is a continuous, real-time feedback loop. Every industrial automation system — from the simplest conveyor to the most complex petrochemical plant — operates on the same fundamental four-stage cycle:
| Step | Phase | What Happens |
|---|---|---|
| 1 | INPUT | Sensors and actuators collect real-world data — temperature, pressure, flow rate, speed — and feed it into the electrical control system. |
| 2 | PROCESSING | The PLC reads all input signals, executes the programmed logic, and evaluates conditions within milliseconds using the scan cycle. |
| 3 | OUTPUT | Commands are issued to automation panel components: motors start, valves open, conveyors accelerate, alarms activate. |
| 4 | FEEDBACK | Sensors confirm the results of output actions, closing the loop. The HMI displays live system status for the operator at all times. |
This loop runs continuously — completing a full cycle every 5–20 milliseconds — meaning the electrical control system is rechecking and recalculating the state of your entire plant dozens of times per second. No human operator can match this speed or consistency.
The PLC Scan Cycle: The Technical Foundation of Reliability
One of the most important concepts in understanding how a PLC control panel works is the scan cycle. A PLC does not process all inputs and outputs simultaneously — it follows a structured sequential process that completes in 1–20 milliseconds depending on program complexity.
| Scan Phase | Activity | Typical Time |
|---|---|---|
| Input Scan | Reads status of all input devices: sensors, switches, actuators | ~1 ms |
| Program Execution | Evaluates every rung of ladder logic or function block sequentially | ~2–5 ms |
| Output Scan | Updates all output devices based on logic results | ~1 ms |
| Diagnostics | Checks internal health, communications, and memory integrity | ~0.5 ms |
This cyclical, deterministic behaviour is what makes PLCs so reliable for safety-critical applications. Unlike a general-purpose computer, the PLC scan cycle is predictable and consistent — a property that allows engineers to design systems with precisely calculated response times.

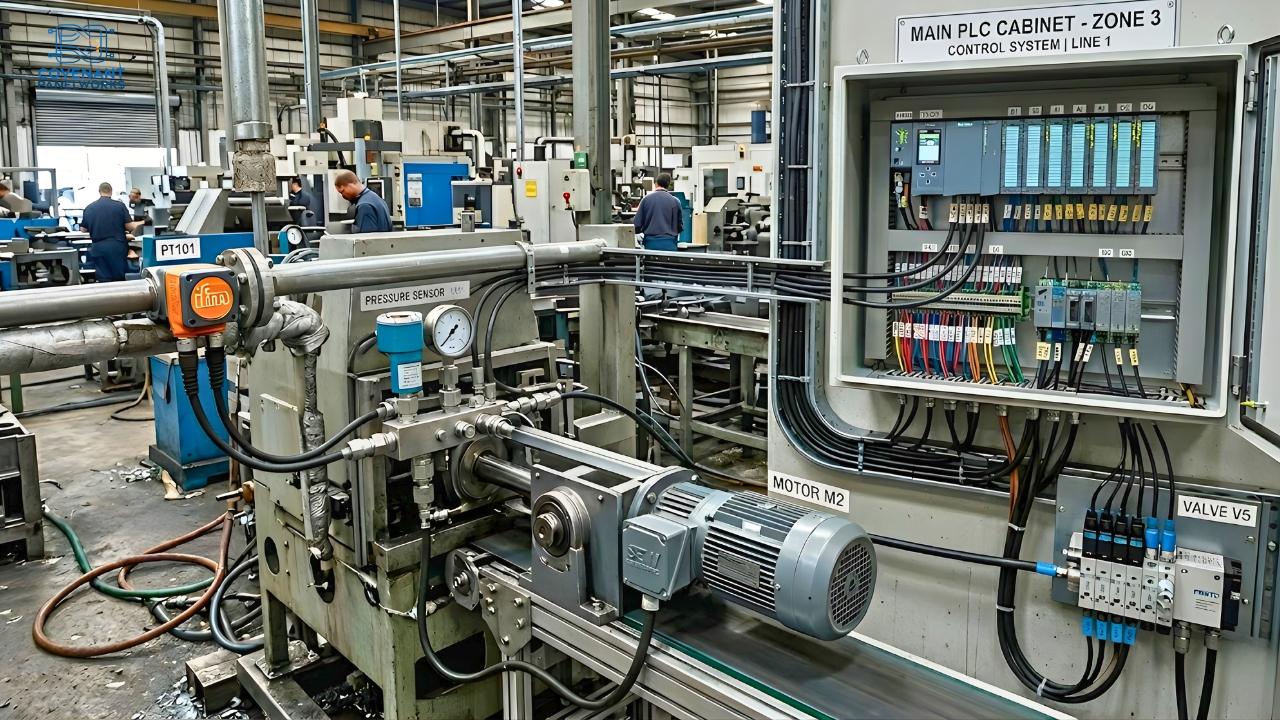

How Does an Industrial Control Panel Work? (Step-by-Step Process)
Now that we understand the automation loop, let’s trace the complete journey of a single process event — say, a conveyor belt reaching operating speed — through the industrial control panel, step by step.
Step 1: Input Collection — Sensors and Actuators at Work
Every control sequence begins with data. Sensors and actuators are the eyes and ears of the electrical control system, continuously monitoring physical conditions throughout the plant.
- Temperature sensors (thermocouples, RTDs) report process heat levels
- Pressure transducers monitor fluid and gas pressures
- Proximity switches detect object position and conveyor fill levels
- Flow meters measure liquid or gas movement
- Speed encoders track motor RPM and conveyor velocity
These signals are transmitted as either analogue (4–20mA, 0–10V) or digital (on/off) inputs to the PLC input modules — the data gateway into the panel’s control logic.
Step 2: Signal Processing — The PLC Receives and Analyses Data
Once input signals arrive at the PLC control panel, the processor reads each value and stores it in memory. The PLC then executes its user-written logic program — typically in IEC 61131-3 programming languages such as Ladder Diagram (LD), Function Block Diagram (FBD), or Structured Text (ST).
During this phase, the PLC evaluates conditions against setpoints. For example: “If conveyor speed sensor drops below 0.5 m/s for more than 3 seconds AND the overload relay has not tripped, THEN trigger a speed alert on the HMI.” This conditional logic is the foundation of how control panels work in automation.
Step 3: Decision Making — Conditional Logic in Action
This is the intelligence layer of the industrial automation system. Based on current input values and programmed logic, the PLC makes a decision. Common decision types include:
- Interlock Logic: Prevents a dangerous condition — e.g., a pump cannot start if the discharge valve is closed.
- Sequence Control: Steps through a defined process sequence — e.g., mix, heat, hold, discharge.
- PID Control: Continuously adjusts an output (like a valve position) to maintain a process setpoint (like temperature).
- Safety Functions: Triggers an emergency stop or alarm if any parameter exceeds its safe operating range.
Step 4: Output Execution — Automation Panel Components Respond
The PLC issues commands to the output section of the industrial control panel, activating physical devices in the field:
- Motor starters and contactors start/stop motors via electrical control systems
- Solenoid valves control fluid or gas flow
- Variable Frequency Drives (VFDs) adjust motor speed for energy-efficient operation
- Pilot lights and alarms provide visual and audible status to operators
- Actuators move dampers, gates, and mechanical components
Step 5: Monitoring and Feedback — The HMI Closes the Loop
The final step in every cycle is feedback — and this is where the Human Machine Interface (HMI) becomes critical. The HMI displays live process data, trends, alarms, and system status, giving operators complete visibility over their electrical control system from a single touchscreen.
Simultaneously, sensors report the result of the output actions back to the PLC, confirming whether the intended action occurred. If the conveyor did not reach speed within the programmed timeframe, the PLC detects this discrepancy and triggers a fault response — all without any operator intervention required.
Key Components of an Industrial Control Panel
A fully engineered industrial control panel is built from multiple specialist components, each performing a distinct and critical role. Understanding what goes inside the enclosure is essential to specifying, maintaining, and troubleshooting these systems effectively.
Programmable Logic Controller (PLC)
The PLC is the brain of the entire industrial automation system. It reads inputs, executes logic, and drives outputs at speeds no human operator could replicate. Modern PLCs offer deterministic scan cycles, redundancy options, and direct integration with SCADA and cloud systems.
- Role: Logic execution, process sequencing, data acquisition, safety interlocking
- Common platforms: Siemens S7, Allen-Bradley ControlLogix, Omron NX/NJ, Mitsubishi MELSEC
- CPW capability: Covenant Panelworks programs and integrates PLCs from all major manufacturers, providing factory acceptance tested (FAT) assemblies.
Human Machine Interface (HMI)
The HMI is the operator’s window into the process. A well-designed HMI panel displays real-time values, trends, and alarm histories — allowing operators to monitor, adjust, and troubleshoot the electrical control system without needing physical access to the field.
- Role: Live data visualisation, alarm management, recipe management, remote diagnostics
- Integration: HMIs communicate with PLCs via Modbus, Profibus, EtherNet/IP, and Profinet protocols
Variable Frequency Drive (VFD)
VFDs are one of the most impactful components in any energy-conscious facility. By varying the frequency of power supplied to a motor, VFDs enable precise speed control — eliminating the energy waste of full-speed/stop motor operation.
- Energy savings: 20–50% motor energy reduction in typical pump and fan applications
- Process benefits: Soft-start capability eliminates mechanical stress and water hammer in pipework
- Integration: VFDs receive speed references directly from the PLC and report back operating data
Circuit Breakers and Protection Devices
Every industrial control panel includes a hierarchy of protection designed to prevent electrical faults from becoming catastrophic failures. These devices safeguard both the electrical control systems and the people who work around them.
- Moulded Case Circuit Breakers (MCCBs) — primary short-circuit and overload protection
- Miniature Circuit Breakers (MCBs) — protection for individual control circuits
- Residual Current Devices (RCDs) — earth fault protection for personnel safety
- Surge Protection Devices (SPDs) — protect sensitive electronics from voltage spikes
Relays and Contactors
Relays are electrically operated switches used to control circuits at higher voltages or currents than a PLC output can handle directly. Contactors are heavy-duty relays designed specifically for motor switching applications.
- Control relays: Interface between PLC digital outputs and field devices
- Contactors: Handle motor starting currents; rated by AC1 to AC3 duty categories
- Overload relays: Protect motors from sustained overcurrent — essential in every MCC build
Power Supply and Panel Wiring
A reliable power supply converts incoming AC voltage (typically 415V three-phase or 240V single-phase) to the 24VDC required by PLCs, HMIs, and control circuits. Stable, clean power is non-negotiable for reliable PLC control panel operation.
Wiring within the panel must comply with cable colour coding standards, be correctly routed through cable ducts, and be terminated with correct torque values. Poor wiring is one of the leading causes of panel failure in the field — and one of the first things a qualified inspector checks.
Integration with Modern Automation Systems
A modern industrial control panel does not operate in isolation — it is a node within a broader industrial automation system. Understanding these integration layers is essential to grasping the full capability of today’s electrical control systems.

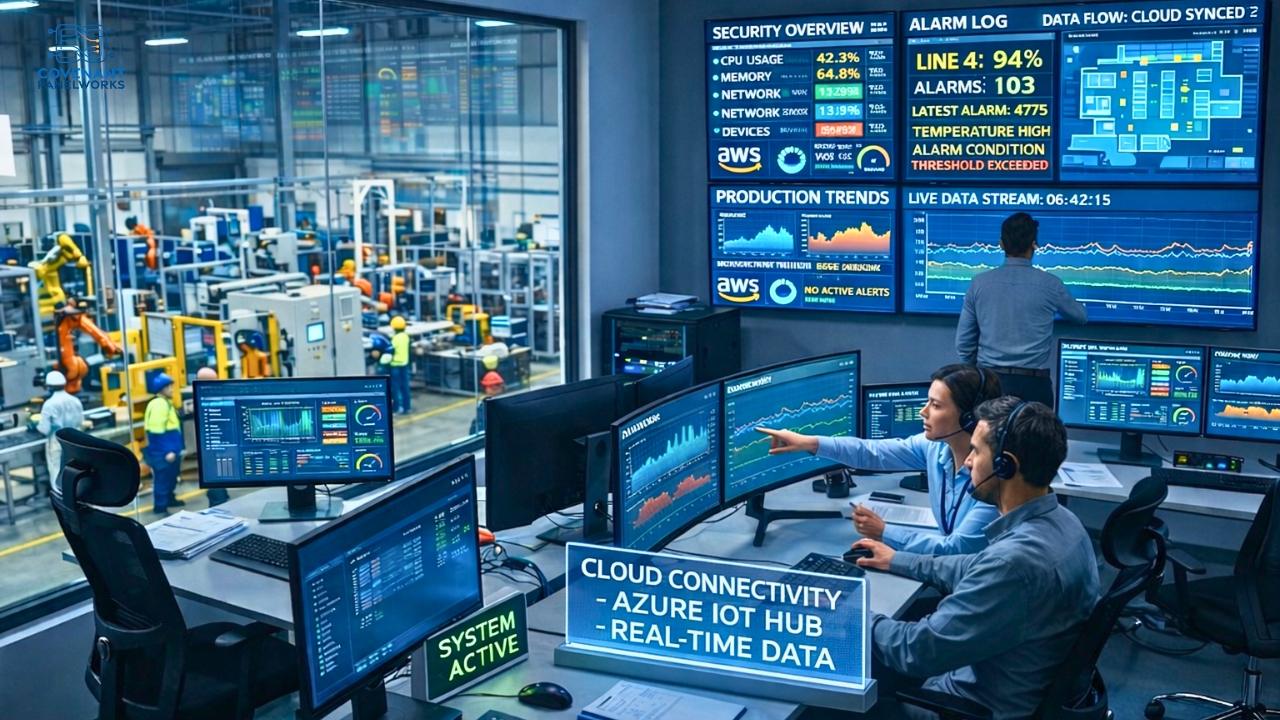

SCADA Systems
Supervisory Control and Data Acquisition (SCADA) platforms connect multiple PLC control panels across a site — or across multiple sites — providing supervisory-level monitoring and control. SCADA systems deliver:
- Real-time visualisation of plant-wide data on operator workstations
- Historical data logging and trend analysis for process optimisation
- Alarm management across all connected control panels
- Remote operator intervention capability
Manufacturing Execution Systems (MES)
MES software sits between the shop floor (PLCs and panels) and the enterprise level (ERP systems like SAP). It captures production data, output counts, quality readings, and downtime events — and feeds them into business intelligence tools. This integration transforms industrial control panels from operational assets into strategic data sources.
IIoT and Smart Factory Integration
The Industrial Internet of Things (IIoT) is rapidly transforming how control panels work in automation. Panels now act as intelligent edge devices, publishing real-time data to cloud platforms via MQTT or OPC-UA protocols. This enables:
- Remote monitoring and diagnostics from any internet-connected device
- AI-powered analytics identifying inefficiencies and predicting failures before they occur
- Digital twin simulation of panel logic before physical deployment
- Integration with enterprise dashboards for real-time OEE (Overall Equipment Effectiveness) monitoring
INDUSTRY STAT
According to Gartner, over 75% of industrial enterprises are expected to use IIoT-enabled systems by 2025. The panels at the core of those systems need to be engineered for connectivity from day one — not retrofitted as an afterthought.
Benefits of Industrial Control Panels in Automation
The case for investing in properly engineered electrical control systems is compelling across every metric that matters to operations managers:
| Benefit | Impact | Category |
|---|---|---|
| Increased Efficiency | Automated systems execute tasks up to 10x faster than manual processes — with zero fatigue. | Productivity |
| Reduced Human Error | Logic-based decisions eliminate operator mistakes, reducing defect rates by up to 60%. | Quality |
| Improved Safety | Built-in protection devices halt operations instantly during faults, protecting workers and equipment. | Safety |
| Energy Savings | VFD integration reduces motor energy consumption by 20–50% in typical applications. | Cost Reduction |
| Scalability | Custom electrical panels can be expanded with additional I/O modules as operations grow. | Flexibility |
McKinsey Global Institute reports that facilities deploying industrial automation systems see a 20–30% increase in production throughput and 10–15% reduction in operating costs within the first three years of implementation.
Design Considerations for Industrial Control Panels
Designing an effective industrial control panel isn’t just about selecting the right components — it’s about creating a system that performs reliably under real-world conditions. A well-designed panel ensures safety, efficiency, and long-term scalability. A poorly designed one leads to frequent failures, downtime, and rising maintenance costs.
Application and Load Requirements
The foundation of any panel design starts with a clear understanding of the application and its load requirements. This includes evaluating the type of process (motor control, automation, or distribution) and calculating the total power demand of all connected devices — motors, drives, PLCs, and auxiliaries. Incorrect assessment leads to improper component selection, undersized systems, or unnecessary overdesign.
Panel Layout and Space Optimisation
A well-organized layout improves both functionality and maintainability. Components should be arranged logically, with clear separation between power and control sections. Good spacing ensures proper airflow, reduces heat buildup, and makes troubleshooting faster. A cluttered panel is a maintenance liability.
Heat Management and Ventilation
Heat is one of the most common causes of component failure in control panels. As more devices are packed into compact enclosures, managing temperature becomes critical. Studies show that for every 18°F increase in temperature, the life expectancy of electronic components can be halved. Effective thermal management — through fans, heat exchangers, or air conditioning — is a key design requirement, not an optional extra.
Safety and Accessibility
Safety must be engineered in from the start. Panels must minimise risks including electrical shock, arc flash, and accidental contact with live components. Proper labelling, grounding, insulation, and adherence to safety standards are essential. At the same time, the design must allow easy access for maintenance without compromising safety procedures.
Future Scalability and Expansion
Industrial systems rarely remain static. As production demands grow or processes evolve, control panels often need to be upgraded or expanded. Designing with scalability in mind — leaving space for additional components, using modular architectures, documenting I/O assignments clearly — can save significant time and cost over the panel’s lifecycle.
Standards and Compliance: What Every Engineer and OEM Needs to Know
Design and functionality are only part of the equation. Compliance with recognised standards is what ensures a panel is safe, legally deployable, and accepted across markets. For engineers and OEMs, this isn’t just a technical requirement — it’s a commercial necessity. Non-compliance means project delays, rejected installations, safety risk, and liability exposure.
Key UL Standards for North American Markets
| Standard | Purpose |
|---|---|
| UL 508A | Primary standard for industrial control panels — covering design, component selection, wiring methods, and overall safety requirements for general industrial applications. |
| UL 698A | Applicable to control panels installed in hazardous (classified) locations — environments with flammable gases, vapours, or dust. |
| UL 845 | Governs Motor Control Centers (MCCs) — ensuring safe operation, construction, and performance of systems controlling multiple motors. |
| UL 891 | Covers dead-front switchboards — focusing on safe distribution of electrical power in commercial and industrial applications. |
| UL 1558 | Applies to metal-enclosed low-voltage power circuit breaker switchgear — critical for data centres and large industrial facilities. |
| NFPA 70 (NEC) | National Electrical Code — guidelines for safe electrical installation, wiring, grounding, and overcurrent protection. |
| NFPA 79 | Electrical safety standard for industrial machinery — covers safe wiring practices, control circuits, and equipment protection. |
| IEC 61439 | International standard for low-voltage switchgear and controlgear assemblies — the global benchmark outside North America. |
CPW COMPLIANCE COMMITMENT
Covenant Panelworks builds every panel to UL 508A certification standards. Our vertically integrated operations and documented quality processes mean panels leave our Pittsburgh-area facility fully tested, compliant, and ready for installation.
Common Problems and Troubleshooting Guide
Even the best-engineered electrical control systems require maintenance and occasional troubleshooting. Here are the five most common industrial control panel problems — and how to resolve them:
| Problem | Likely Cause | Solution |
|---|---|---|
| Panel Overheating | Blocked vents, oversized load, failed cooling fan | Clean vents, check thermal ratings, add air conditioning unit |
| Wiring Issues | Loose terminals, incorrect routing, vibration fatigue | Torque all terminals to spec; use ferrules on stranded wires |
| PLC Failures | Power surge, firmware error, I/O module fault | Check power supply voltage; replace I/O module; reload program |
| Communication Errors | Faulty cable, IP conflict, protocol mismatch | Verify baud rates, check network topology, replace cables |
| Nuisance Tripping | Undersized breaker, harmonic distortion from VFDs | Upsize protection device; install line reactors on VFD outputs |
Preventive Maintenance Best Practices
- Monthly: Monthly: Inspect enclosure for moisture ingress, clean ventilation filters, check door seals
- Quarterly: Quarterly: Thermal scan of all terminals and connections using an infrared camera
- Annually: Annually: Torque check all connections, test protection devices, verify PLC program backup, update firmware
- Every 5 Years: Every 5 years: Review panel for obsolete components, assess compliance with current standards
Industry best practices show that well-documented, regularly maintained systems can reduce troubleshooting time by up to 40% — particularly in complex multi-panel installations.
Industrial Control Panels in Smart Factories
The shift toward smart manufacturing has fundamentally changed what a control panel is expected to do. What were once basic control units are now intelligent systems that connect machines, collect data, and support real-time decision-making across entire operations.
In a smart factory, a control panel doesn’t just control processes — it helps optimize them. IDC reports that spending on Industry 4.0 technologies is expected to exceed $200 billion annually, reflecting how fast this transformation is accelerating. According to Deloitte, predictive maintenance enabled by connected panels can reduce unplanned downtime by 30–50%.
Covenant Panelworks engineers panels with smart factory integration in mind — whether that’s IIoT readiness, SCADA connectivity, or modular architectures designed to scale as your operations evolve.
How to Choose the Right Industrial Control Panel for Your Application
Selecting the right panel is one of the most consequential decisions in any automation project. Use this six-step framework to guide your selection:
- Define Your Process Requirements — Map every input, output, communication requirement, and safety function. This defines the I/O count and PLC specification.
- Specify the Environment — Determine the NEMA or IP rating needed based on dust, moisture, chemicals, or explosive atmosphere exposure.
- Assess Regulatory Requirements — Identify which standards apply: UL 508A, IEC 61439, ATEX for hazardous areas, or sector-specific codes.
- Evaluate Custom vs. Standard — Off-the-shelf panels are faster and cheaper for simple applications. Custom electrical panels from a specialist builder deliver optimised design, full compliance, and ongoing support.
- Consider Scalability — Build in spare I/O capacity and physical enclosure space. Adding a module later is far cheaper than replacing a panel.
Assess Total Cost of Ownership — A cheaper panel with poor documentation, no FAT testing, and unsupported components will cost far more over its lifetime than a correctly engineered solution.
Why Covenant Panelworks (CPW)
Covenant Panelworks (CPW) is the sister company of c3controls, carrying forward more than 50 years of disciplined manufacturing expertise into a focused, high-quality industrial control panel operation. Built on the c3controls legacy since 1976, CPW brings the engineering rigour, vertically integrated operations, and documented quality processes that OEM partners and system integrators rely on.
CPW is a UL 508A-certified panel builder operating from our Pittsburgh-area facility — delivering domestic manufacturing advantages that give OEM partners greater control over project timelines, logistics, and production coordination.
| CPW Capability | What It Means for You |
|---|---|
| UL 508A Certified Panels | Every panel meets the mandatory North American safety standard — no exceptions, no shortcuts. |
| Custom Panel Engineering | Purpose-built to your exact process requirements, I/O count, environment rating, and compliance needs. |
| Vertically Integrated Operations | Faster builds, reliable lead times, and direct pricing with no middle layers or cost inefficiencies. |
| Factory Acceptance Testing (FAT) | Every panel is tested before it leaves our facility — reducing on-site risk and installation delays. |
| Full Documentation Package | Schematics, BOMs, test reports, and compliance records delivered with every panel. |
| Made in the USA | Pittsburgh-area manufacturing with domestic supply chain advantages for OEM partners. |
Final Thoughts
From the moment a sensor detects a temperature change to the instant a valve responds, an industrial control panel has processed that event, executed the logic, and issued the command in a fraction of a second. Understanding how control panels work in automation isn’t just technical knowledge — it’s the foundation for smarter investment decisions, lower operational risk, and unlocking the full potential of your facility.
The future of industrial automation is smarter, faster, and more connected than ever before. AI-augmented PLCs, IIoT-enabled custom electrical panels, and digital twin commissioning are transitioning from innovation to industry standard. Facilities that invest in properly engineered electrical control systems today will have the infrastructure to compete in the smart factories of tomorrow.
Frequently Asked Questions
How does a PLC control a machine?
A PLC controls a machine by continuously reading sensor inputs, executing a user-written logic program, and issuing commands to output devices such as motors, valves, and actuators. The PLC scan cycle completes this input-process-output sequence every 5–20 milliseconds, enabling real-time, precise machine control.
What is the lifespan of an industrial control panel?
A well-maintained industrial control panel typically has a functional lifespan of 15–25 years. Lifespan depends on environmental conditions, quality of components, maintenance frequency, and whether firmware and software are kept current. Key components such as PLCs and HMIs may require upgrading before the enclosure itself needs replacement.
Can industrial control panels be customized?
Yes — and for most industrial applications, custom electrical panels are the preferred solution. A qualified control panel builder like Covenant Panelworks designs panels to your exact process requirements, I/O count, environmental rating, and compliance standards, ensuring optimal performance and long-term supportability compared to off-the-shelf alternatives.
What industries rely most on industrial control panel systems?
Industrial control panels are critical in manufacturing, oil and gas, water and wastewater treatment, food and beverage, pharmaceuticals, mining, power generation, HVAC-R, and data centre infrastructure. Any sector with repetitive, precise, or safety-critical process requirements benefits significantly from properly engineered electrical control systems.
Are industrial control panels energy efficient?
Yes — particularly when Variable Frequency Drives (VFDs) are integrated. VFDs reduce motor energy consumption by 20–50% in pump, fan, and conveyor applications by matching motor speed to actual process demand rather than running at full speed continuously. Modern industrial automation systems are specifically designed to minimise energy waste across all operational phases.
What is the difference between a PLC panel and a SCADA system?
A PLC control panel executes local automation logic at machine level — reading inputs, processing decisions, and driving outputs. SCADA (Supervisory Control and Data Acquisition) is a higher-level software system that monitors and coordinates multiple PLC panels across an entire site, providing data logging, alarming, and operator oversight of the complete industrial automation system.
How much does a custom industrial control panel cost?
Custom electrical panel costs vary based on complexity, component specification, enclosure rating, and compliance requirements. A simple PLC panel may start from a few thousand dollars, while a full Motor Control Center for a large facility can reach six figures. Covenant Panelworks provides detailed, itemized quotations with no hidden costs — contact us for a free engineering assessment.
What is the SCCR, and why does it matter?
Short-Circuit Current Rating (SCCR) defines the maximum fault current a panel can safely withstand. Calculated based on the lowest-rated component in the power circuit, SCCR must match or exceed the available fault current at the installation point. An underrated panel presents a serious explosion and fire risk — and is a compliance requirement under UL 508A.
What are the best practices for control panel wiring?
Good wiring practices focus on safety, organization, and long-term reliability: proper cable routing, segregation of power and control wiring, use of ferrules and labelled terminals, and adequate spacing between components. Following UL 508A and IEC wiring guidelines ensures consistent, safe wiring that also makes future troubleshooting significantly faster.
