Industrial Control Panels: A Quick Guide for Panel Builders

In today’s highly automated industrial environment, efficiency, precision, and reliability are no longer optional; they are fundamental requirements. At the center of this transformation lies the Industrial Control Panel, a critical system that enables seamless coordination between machines, processes, and human operators. From manufacturing plants to energy facilities, these panels serve as the operational backbone, ensuring everything runs as intended.

An industrial control panel is far more than a collection of electrical components housed in an enclosure. It functions as the centralized control unit that monitors inputs, processes control logic, and executes outputs in real time. This ability to manage complex operations accurately makes it indispensable in modern automation systems.

The demand for advanced control systems has grown rapidly with the adoption of Industry 4.0 and smart manufacturing practices. According to market research, the industrial automation market is projected to exceed $300 billion by 2027, reflecting the increasing reliance on automation technologies. Additionally, a report by McKinsey & Company states that digital transformation initiatives can improve manufacturing productivity by 20–30%, with control systems playing a key enabling role.

For OEMs, system integrators, and engineers, this shift brings both opportunities and responsibilities. There is a growing need for systems that are not only efficient but also safe, scalable, and compliant with international standards. This is where UL Certified Control Panels and UL 508 Custom Control Panels become essential, ensuring that systems meet stringent safety and performance requirements.

At the same time, the expectations from Industrial Control Panel Manufacturers have evolved significantly. Today, manufacturers are expected to deliver more than just assembled panels; they must provide engineered solutions that align with specific operational needs, environmental conditions, and future scalability.

In this guide, we will take a structured approach to understanding industrial control panels from their core functions and components to design considerations, compliance standards, and practical selection tips. Whether you are designing a system or evaluating options, this guide will help you make informed, technically sound decisions.

What is an Industrial Control Panel?

An industrial control panel is a structured assembly of electrical components designed to control, monitor, and protect machines and industrial processes. It serves as a centralized system where all control operations are organized within a single enclosure, making it easier for operators and engineers to manage complex systems efficiently.

At a functional level, it acts as the “brain” of an automated setup. The panel receives signals from field devices such as sensors, switches, and push buttons. These inputs are then processed through control logic, often using PLCs, and the system responds by sending commands to output devices like motors, valves, or actuators. This continuous loop ensures that operations run smoothly with minimal manual intervention.

The role of a control panel can be broadly divided into three key functions:

• Control: Executing machine operations based on programmed logic or user inputs

• Monitoring: Providing real-time insights into system performance and conditions

• Protection: Preventing damage by handling faults such as overloads, short circuits, and voltage fluctuations

You’ll find these panels across a wide range of industries, including manufacturing, energy, water treatment, pharmaceuticals, and food processing. For instance, in a production line, the panel may regulate machine sequences and maintain process consistency, while in a utility setup, it can manage pumps, pressure levels, and flow control.

As automation becomes more advanced, these panels are also evolving. Many modern systems are built to meet strict safety and compliance requirements, especially for global applications. This is where certified and custom-engineered panels play a crucial role, ensuring not just performance, but also long-term reliability and safety.

At the same time, expectations from manufacturers have shifted. It’s no longer just about assembling components; it’s about delivering well-engineered systems that align with specific operational needs and can adapt to future upgrades.

Types of Industrial Control Panels

Not all control panels are built the same, and that’s a good thing. Different industrial applications require different levels of control, power handling, and automation. That’s why control panels are designed in various types, each tailored to a specific function.

Understanding these types helps engineers and OEMs choose the right configuration for their application, instead of overengineering or underdesigning a system.

Power Control Panels

Power control panels are primarily used for managing and distributing electrical power within an industrial facility. They ensure that the right amount of power is delivered to different machines and systems safely.

These panels typically include circuit breakers, busbars, and protection devices. You’ll commonly find them in large manufacturing plants, power stations, and infrastructure projects where stable power distribution is critical.

PLC Control Panels

PLC control panels are focused on automation and logic-based control. They use programmable logic controllers to automate processes based on inputs and predefined conditions.

These panels are ideal for applications that require precision, repeatability, and flexibility, such as assembly lines, packaging systems, and process automation.

Automation / Control System Panels

These panels are more advanced and integrate multiple systems, including PLCs, HMIs, SCADA, and communication networks. They are designed for complex automation environments where centralized monitoring and control are essential.

With the rise of Industry 4.0, these panels are becoming increasingly common, enabling real-time data tracking, remote access, and predictive maintenance.

Distribution Panels

Distribution panels are used to divide incoming electrical power into subsidiary circuits. While they may seem similar to power control panels, their primary role is distribution rather than control.

They are commonly used in commercial and industrial setups to ensure safe and organized power flow across different sections of a facility.

Custom-Built Panels for OEM Applications

In many cases, standard panels simply don’t meet specific operational requirements. That’s where custom-built panels come in. These are designed based on unique application needs, environmental conditions, and compliance requirements.

For example, a UL 508 Custom Control Panel is specifically engineered to meet strict safety standards, especially for projects targeting North American markets. Similarly, many industries rely on UL Certified Control Panels to ensure both compliance and long-term reliability.

This is where experienced Industrial Control Panel Manufacturers play a crucial role designing and delivering panels that are not only tailored to the application but also future-ready.

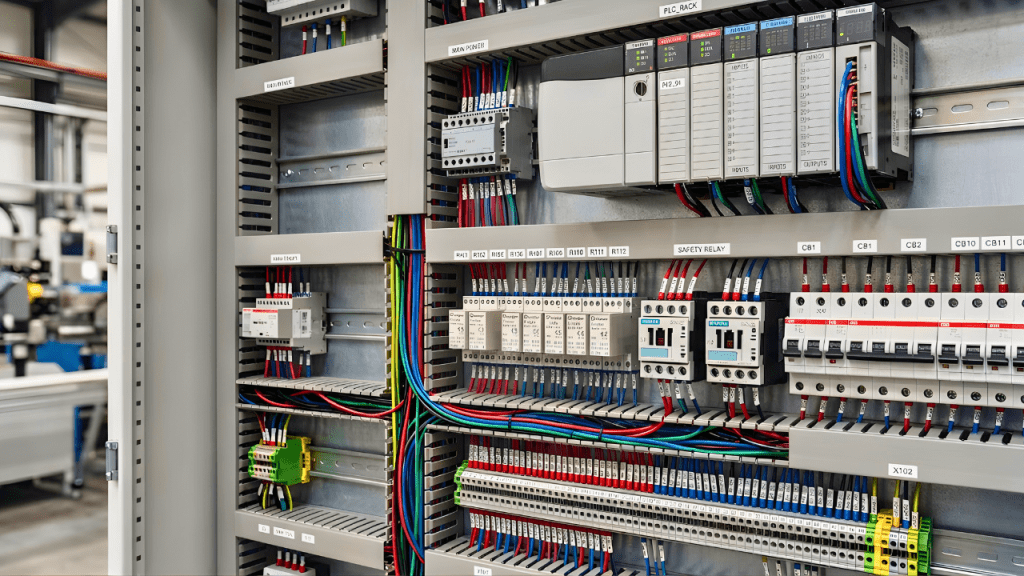

Key Components of an Industrial Control Panel

To understand how an industrial control panel actually performs in real-world conditions, you need to look inside it. Every panel is built using a combination of carefully selected components, each playing a specific role in ensuring smooth, safe, and reliable operation.

A well-designed panel isn’t just about putting parts together—it’s about how these components interact with each other to control an entire system efficiently.

Circuit Breakers and Protection Devices

These are the first line of defense in any control panel. Circuit breakers, fuses, and overload relays protect the system from faults such as short circuits and overcurrent conditions.

Without proper protection devices, even a minor electrical fault can damage expensive equipment or cause complete system failure. This is why selecting the right protection components is critical, especially in high-load industrial environments.

Relays and Contactors

Relays and contactors act as electrically operated switches. They allow low-power control signals to manage high-power equipment like motors and heaters.

Contactors are typically used for switching heavy loads, while relays are used for control logic and signal switching. Together, they form the backbone of electrical control within the panel.

Programmable Logic Controllers (PLCs)

PLCs are the decision-making units of modern control panels. They process input signals, execute programmed logic, and trigger outputs accordingly.

Instead of relying on complex wiring, PLCs simplify automation by using software-based control. According to MarketsandMarkets, the global PLC market is expected to reach $15+ billion by 2026, underscoring its essential role in industrial automation.

Power Supplies

Power supplies convert incoming electrical power into usable voltage levels required by control components—typically 24V DC for PLCs, sensors, and relays.

A stable power supply is crucial because fluctuations can lead to system instability or unexpected shutdowns.

Terminal Blocks and Wiring Systems

Terminal blocks are used to organize and secure wiring connections within the panel. They make installation, troubleshooting, and maintenance much easier.

A clean and well-labeled wiring system is not just good practice; it significantly reduces downtime during maintenance or fault diagnosis.

Human Machine Interfaces (HMIs)

HMIs provide a user-friendly interface for operators to interact with the system. Through touchscreens or display panels, users can monitor performance, adjust settings, and respond to alarms in real time.

Modern HMIs often come with data visualization features, making it easier to track system performance and improve decision-making.

Drives (VFDs and Soft Starters)

Drives are used to control motor speed and torque. Variable Frequency Drives (VFDs) allow precise speed control, while soft starters reduce the mechanical stress during motor startup.

The use of VFDs can significantly improve energy efficiency. According to the U.S. Department of Energy, VFDs can reduce energy consumption in motor-driven systems by up to 30–50%.

Enclosures and Cooling Systems

The enclosure protects all internal components from environmental factors such as dust, moisture, and heat.

Cooling systems like fans, filters, or air conditioners are equally important. Excess heat can reduce component lifespan and lead to system failure, making thermal management a key design consideration.

But choosing the appropriate IP rating (IEC 60529) or NEMA/UL rating (NEMA 1, 4, 4X, etc.), depending on the environment (indoor/outdoor, corrosive, dusty, wet), is very important.

How Industrial Control Panels Work?

Understanding how an industrial control panel works doesn’t require diving into overly complex theory. At its core, the operation follows a simple and logical sequence—Input → Process → Output → Control. But the way this sequence is executed in real-time, across multiple devices, is what makes these systems so powerful.

Basic Working Principle

Every control panel operates by continuously receiving data from the field, processing it, and responding accordingly. This cycle happens in milliseconds, ensuring smooth and uninterrupted operations.

For example, if a temperature sensor detects overheating, the system can instantly trigger a cooling mechanism or shut down equipment to prevent damage.

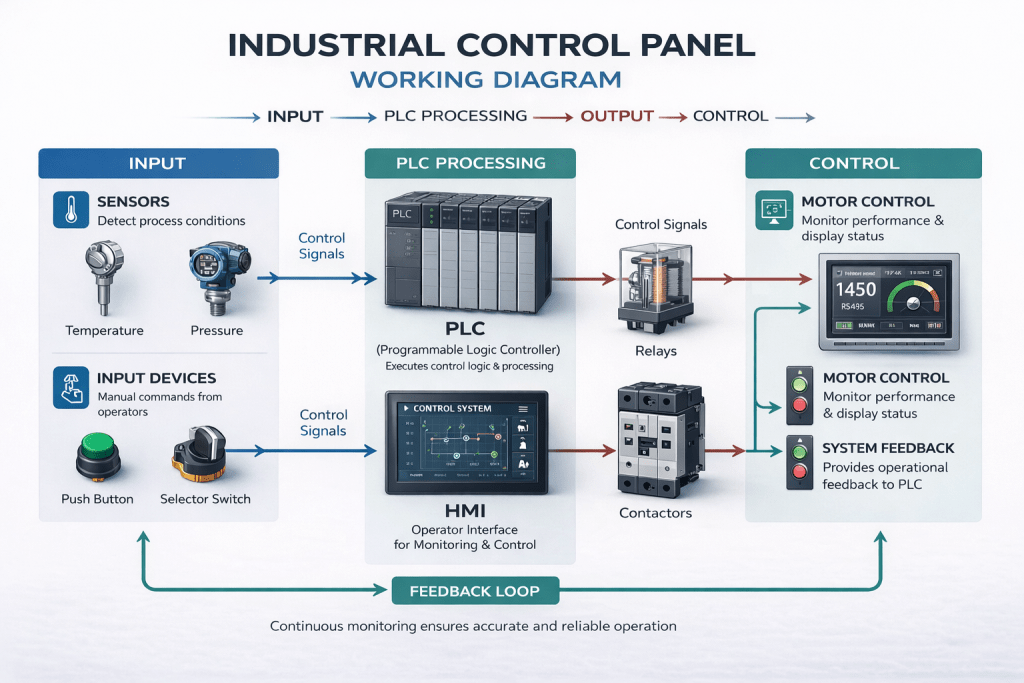

Signal Flow: Input → Process → Output → Control

Power Distribution:

Incoming electrical supply is received through the main incomer and protected using breakers. It is then distributed to various circuits via busbars, MCBs, and contactors. This ensures safe and reliable power flow to all panel components.

Input Signals:

Field devices like sensors, limit switches, and transmitters send digital or analog signals to the control system. These signals represent real-time process conditions. They form the basis for all control decisions.

Control Logic:

A PLC or relay-based system processes input signals using predefined logic and sequencing. It evaluates conditions, timers, and interlocks. This acts as the decision-making core of the panel.

Output Actions:

Based on the logic, the system triggers outputs such as starting motors, operating valves, or activating alarms. Outputs are executed through relays, contactors, or drives. This converts decisions into physical actions.

Operator Interface:

Operators interact through push buttons, selector switches, or HMI screens. They can monitor system status, acknowledge alarms, and control operations. This provides visibility and manual control when required.

This closed-loop system ensures that processes remain controlled, consistent, and responsive to real-time conditions.

Role of PLCs and Control Logic

PLCs are the core processing units inside most modern panels. They replace traditional relay-based control systems with software-driven logic, making systems more flexible and easier to modify.

Instead of rewiring hardware, engineers can simply update the control logic through programming. This reduces downtime and allows quick adaptation to process changes—something that’s essential in today’s fast-paced industrial environments.

Integration with Sensors, Actuators, and Machines

A control panel doesn’t operate in isolation—it’s part of a larger ecosystem. It connects with:

• Sensors to collect real-time data
• Actuators to execute physical actions
• Machines and equipment to perform operations

In advanced setups, panels also integrate with SCADA systems and IoT platforms, enabling remote monitoring and control. According to Gartner, by 2025, over 75% of industrial enterprises are expected to use IoT-enabled systems, highlighting the growing importance of connected control architectures.

Design Considerations for Industrial Control Panels

Designing an effective industrial control panel isn’t just about selecting the right components—it’s about creating a system that performs reliably under real-world conditions. A well-designed panel ensures safety, efficiency, and long-term scalability, while a poorly designed one can lead to frequent failures, downtime, and increased maintenance costs.

Here are the key factors engineers and OEMs must carefully evaluate during the design phase:

Application and Load Requirements

The foundation of any panel design starts with a clear understanding of the application and its load requirements. This includes evaluating the type of application (such as motor control, automation, or distribution) and determining the total power demand of all connected devices, including motors, drives, PLCs, and auxiliary components.

Incorrect assessment of application needs or load requirements can lead to improper component selection, undersized systems, or unnecessary overdesign. This can impact both performance and safety. Proper evaluation ensures that the panel is designed to handle real operating conditions efficiently, providing stable operation and reducing stress on electrical components.

Applicable Standards and Compliance

Ensuring compliance with relevant industry standards is a critical part of control panel design. Standards such as UL, NFPA, and IEC define requirements for safety, performance, construction, and testing, helping ensure that panels operate reliably under real-world conditions. They provide clear guidelines for component selection, wiring methods, protection mechanisms, and overall system design.

Ignoring these standards can lead to safety risks, performance issues, and complications during inspections or certifications. Designing panels in line with applicable standards not only ensures regulatory compliance but also improves system reliability, consistency, and long-term operational efficiency in industrial environments.

Component Selection and Compatibility

Choosing the right components goes beyond specifications—it’s about compatibility and integration. All devices within the panel must work seamlessly together in terms of voltage ratings, communication protocols, and operational behavior.

For example, mismatched components can lead to signal errors, inefficient performance, or even system failure. This is why experienced engineers focus on building a cohesive system rather than just assembling parts.

Panel Layout and Space Optimization

A well-organized layout improves not only functionality but also maintainability. Components should be arranged logically, with clear separation between power and control sections.

Good spacing ensures proper airflow, reduces heat buildup, and makes troubleshooting easier. A cluttered panel, on the other hand, can lead to overheating and difficult maintenance.

Heat Management and Ventilation

Heat is one of the most common causes of component failure in control panels. As more devices are packed into compact enclosures, managing temperature becomes critical.

Depending on the application, designers may use cooling fans, heat exchangers, or air conditioning units. Effective thermal management can significantly extend the lifespan of components and improve system reliability.

Safety and Accessibility

Safety should never be an afterthought. Panels must be designed to minimize risks such as electrical shock, arc flash, and accidental contact with live components.

Proper labeling, grounding, insulation, and adherence to safety standards are essential. At the same time, the design should allow easy access for maintenance without compromising safety.

Future Scalability and Expansion

Industrial systems rarely remain static. As production demands grow or processes evolve, control panels often need to be upgraded or expanded.

Designing with future scalability in mind—such as leaving space for additional components or using modular architectures—can save significant time and cost down the line.

Standards and Compliance (Critical for Engineers & OEMs)

When it comes to industrial control panels, design and functionality are only part of the equation. Compliance with recognized standards is what ensures the panel is safe, reliable, and accepted across different markets. For engineers and OEMs, this isn’t just a technical requirement—it’s a business necessity.

Failing to meet compliance standards can lead to project delays, rejected installations, safety risks, and even legal consequences. That’s why standards should be considered right from the design stage, not as an afterthought.

UL standards play a critical role in ensuring safety, performance, and acceptance in North American markets. While UL 508A is the most widely recognized standard for control panels, several other UL certifications are equally important depending on the application.

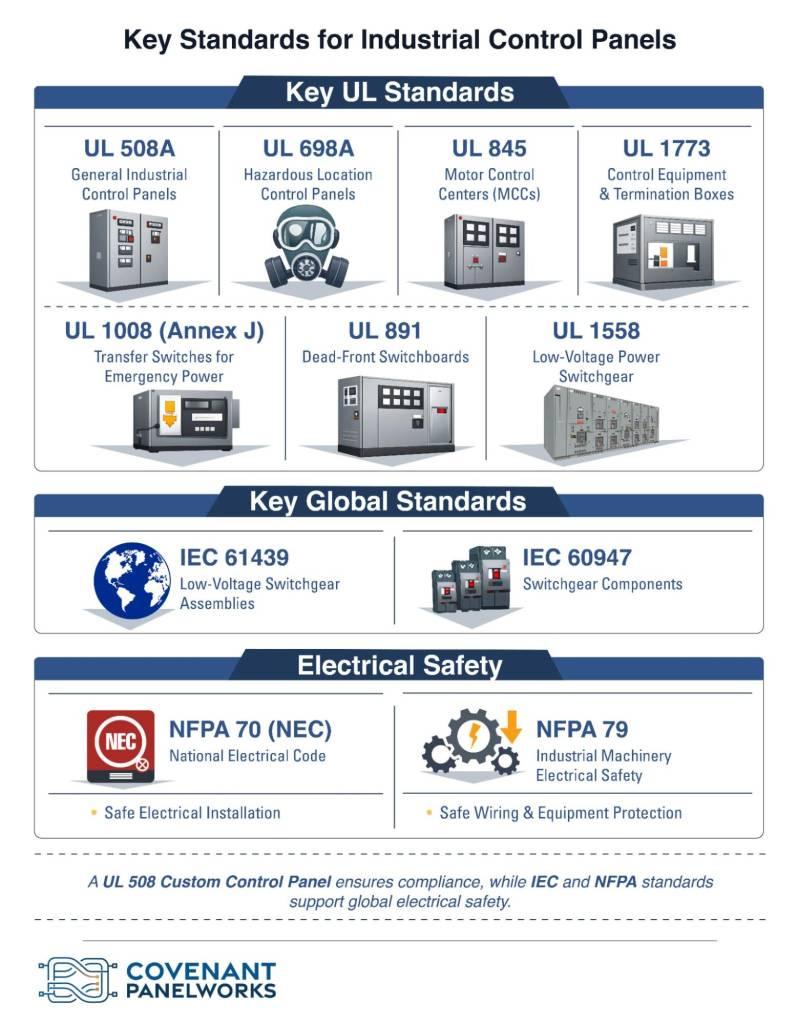

Key UL standards include:

• UL 508A: The primary standard for industrial control panels, covering panel design, component selection, wiring methods, and overall safety requirements for general industrial applications

• UL 698A: Specifically applicable to control panels installed in hazardous (classified) locations, such as environments with flammable gases, vapors, or dust

• UL 845: Governs Motor Control Centers (MCCs), ensuring safe operation, construction, and performance of systems that control multiple motors

• UL 1773: Focuses on industrial control equipment and termination boxes, ensuring proper wiring, connections, and safe signal distribution
• UL 1008 (Annex J): Applies to transfer switches used in emergency and standby power systems, with Annex J addressing additional requirements for specific switching applications
• UL 891: Covers dead-front switchboards, focusing on safe distribution of electrical power in commercial and industrial applications, including construction, performance, and protection requirements
• UL 1558: Applies to metal-enclosed low-voltage power circuit breaker switchgear, ensuring high reliability and safe operation in critical power systems such as data centers and large industrial facilities.

A properly engineered UL 508 Custom Control Panel ensures compliance with these requirements, while UL Certified Control Panels help streamline approvals and reduce installation risks.

Key Global Standards are:

• IEC 61439: An international standard for low-voltage switchgear and controlgear assemblies, covering design verification, performance, and safety requirements for electrical distribution systems
• IEC 60947: Defines standards for low-voltage switchgear and controlgear components, including circuit breakers, contactors, and motor protection devices, ensuring consistent performance and safety across applications

Electrical Safety

While UL standards focus on equipment safety, NEC addresses workplace electrical safety. It provides guidelines to protect personnel from hazards like arc flash and electric shock.

• NFPA 70 (NEC): The National Electrical Code provides guidelines for safe electrical installation, covering wiring, grounding, overcurrent protection, and overall system safety in residential, commercial, and industrial environments
• NFPA 79: Specifically addresses electrical standards for industrial machinery, focusing on safe wiring practices, control circuits, and protection of equipment and operators

This standard directly impacts:

• Arc flash analysis and labeling

• Safe maintenance practices

• PPE requirements and safety procedures

Testing and Quality Assurance

Designing a control panel is only half the job—the real confidence comes after it has been thoroughly tested. Testing and quality assurance ensure that the panel performs exactly as intended under real operating conditions, before it ever reaches the site.

For OEMs and engineers, this step is critical. It helps identify issues early, reduces on-site failures, and ensures compliance with safety and performance standards.

Pre-Commissioning Checks

Before powering up the panel, a series of pre-commissioning checks are carried out to verify that everything is correctly installed and ready for operation.

These checks typically include:

• Verifying wiring connections against schematics

• Ensuring proper tightening of terminals and connections

• Checking component ratings and specifications

• Confirming proper grounding and insulation


This step helps catch basic but critical issues that could otherwise lead to faults during startup.

Functional Testing and Validation

Once initial checks are complete, the panel undergoes functional testing—often referred to as Factory Acceptance Testing (FAT).

Here, the system is tested under simulated or real conditions to ensure that:

• Inputs and outputs respond correctly

• PLC logic executes as expected

• Alarms, interlocks, and safety functions work properly

This stage validates the overall performance of the panel before it is delivered or installed.

Safety Inspections

Safety inspections focus on ensuring that the panel meets all required safety standards and poses no risk to operators or equipment.

This includes:

• Verifying protective devices like circuit breakers and relays

• Checking insulation resistance and grounding systems

• Ensuring proper labeling, warnings, and safety markings

• Confirming compliance with standards such as UL and NFPA guidelines


A well-tested panel significantly reduces the risk of electrical hazards and operational failures.

Documentation and Compliance Verification

Proper documentation is just as important as the physical panel itself. It ensures transparency, traceability, and ease of maintenance.

Typical documentation includes:

• Electrical schematics and layout drawings

• Bill of materials (BOM)

• Test reports and inspection records

• Certification documents (such as UL compliance)


According to industry best practices, well-documented systems can reduce troubleshooting time by up to 40%, especially in complex installations.

Common Challenges in Control Panel Design and Implementation

Even with the right components and a solid design approach, control panel projects often come with their own set of challenges. These aren’t just theoretical issues—they’re real-world problems that engineers and OEMs deal with regularly.

Understanding these challenges early can help avoid costly mistakes, delays, and performance issues down the line.

Space Constraints

One of the most common challenges is limited space within the enclosure. As systems become more advanced, more components need to fit into the same or even smaller panels.

Poor space planning can lead to:

• Difficult installation and maintenance

• Restricted airflow and overheating

• Increased chances of wiring errors


This is why proper layout design and component sizing are critical from the start.

Heat Dissipation Issues

As more devices are packed into compact panels, heat generation increases. Without proper ventilation or cooling, this can lead to component failure and reduced lifespan.

In fact, studies show that for every 10°C increase in temperature, the life of electronic components can be reduced significantly, sometimes by half. This makes thermal management a critical design and operational concern.

Component Compatibility

Not all components work seamlessly together. Differences in voltage levels, communication protocols, or performance characteristics can create integration issues.

Common problems include:

• Signal mismatches between devices

• Communication failures in automation systems

• Unexpected behavior due to incompatible components


Careful selection and system-level planning are essential to avoid these issues.

Evolving Standards and Compliance

Standards and regulations are constantly evolving. What was compliant a few years ago may not meet today’s requirements.

For OEMs working on global projects, this becomes even more complex, as different regions follow different standards. Keeping up with these changes requires continuous learning and adaptation.

Integration with Legacy Systems

Many industries still rely on older equipment that wasn’t designed for modern automation. Integrating new control panels with these legacy systems can be challenging.

Issues may include:

• Lack of compatibility with modern communication protocols

• Limited documentation of older systems

• Higher risk of unexpected failures during integration


However, with the right approach, retrofitting and upgrading legacy systems can significantly improve efficiency without replacing entire setups.

Role of Industrial Control Panels in Smart Factories

The move toward smart manufacturing has significantly changed the role of control panels. What were once basic control units are now intelligent systems that connect machines, collect data, and support real-time decision-making.

In a smart factory, a control panel doesn’t just control processes—it helps optimize them.

Integration with IoT and Industry 4.0

Modern panels are increasingly integrated with Industrial IoT (IIoT), allowing machines and systems to communicate seamlessly.

This enables:

• Real-time data collection

• Centralized monitoring

• Better visibility across operations


According to IDC, spending on Industry 4.0 technologies is expected to exceed $200 billion annually, showing how fast this shift is growing.

Data Monitoring and Remote Control

Control panels now allow operators to monitor and manage systems remotely through SCADA or cloud platforms.

This helps in:

• Faster decision-making

• Reduced on-site dependency

• Quick response to system issues

Automation and Predictive Maintenance

With data-driven insights, modern panels can predict equipment failures before they occur.

According to Deloitte, predictive maintenance can reduce downtime by 30–50%, making operations more reliable and cost-efficient.

Growing Demand for Intelligent Panels

As industries adopt smarter technologies, the demand for advanced, connected panels continues to rise. Businesses now expect systems that are scalable, data-driven, and easy to integrate.

This is pushing Industrial Control Panel Manufacturers to focus more on intelligent, future-ready solutions.

How to Choose the Right Control Panel for Your Application?

Selecting the right control panel isn’t just a technical decision—it directly affects system performance, safety, and long-term reliability. Instead of focusing only on specifications, it’s important to take a practical, application-driven approach.

Understanding Application Requirements

The first and most important step is to clearly understand your application requirements. This includes identifying the type of process you’re working with—whether it’s continuous, batch, or discrete—and determining how many inputs and outputs are involved. You also need to consider the level of automation required and the type of equipment being controlled.

Without this clarity, there’s a high risk of either overdesigning the panel (which increases cost unnecessarily) or underdesigning it (which leads to performance issues). A well-defined requirement ensures the panel is both efficient and purpose-built.

Custom vs Standard Panels

Choosing between a standard and a custom panel depends largely on how specific your operational needs are. Standard panels are suitable for simple and repetitive applications where requirements are predictable. However, most industrial setups involve unique processes, making custom panels a better fit.

Custom-built solutions offer flexibility in design, better integration with existing systems, and easier scalability for future expansion. This is why many businesses prefer working with experienced Industrial Control Panel Manufacturers who can design panels tailored to their exact requirements.

Environmental and Operational Factors

The environment in which the control panel will operate plays a crucial role in its design and durability. Factors such as dust, moisture, temperature fluctuations, and exposure to chemicals must be carefully evaluated.

For example, outdoor installations require weather-resistant enclosures, while chemical or food processing environments may need corrosion-resistant materials like stainless steel. Selecting the appropriate enclosure with the right IP or NEMA rating ensures that the panel remains reliable and safe under actual working conditions.

Cost vs Long-Term Reliability

While it’s natural to consider cost during selection, focusing only on the initial investment can lead to poor decisions. Lower-cost panels often come with compromises in quality, which can result in higher maintenance costs, frequent downtime, and reduced lifespan.

On the other hand, investing in a well-designed and compliant system—such as UL Certified Control Panels or a properly engineered UL 508 Custom Control Panel—can deliver better performance and lower total cost of ownership over time. In most industrial scenarios, reliability and durability outweigh short-term savings.

Final Thoughts

Industrial control panels are essential to modern automation, enabling industries to operate with precision, efficiency, and reliability. From managing simple machine tasks to controlling complex systems, their importance continues to grow with the rise of smart manufacturing and Industry 4.0.

For OEMs and engineers, understanding key aspects like components, design, and compliance is crucial. A well-designed control panel improves efficiency, reduces downtime, enhances safety, and supports scalable operations in real-world environments.

As industry demands evolve, businesses rely on trusted manufacturers like Covenant Panel Works for high-quality, compliant solutions. With a focus on customization and UL-certified standards, they deliver control panels engineered for performance, safety, and long-term reliability.

FAQs
